CNC Machine Print

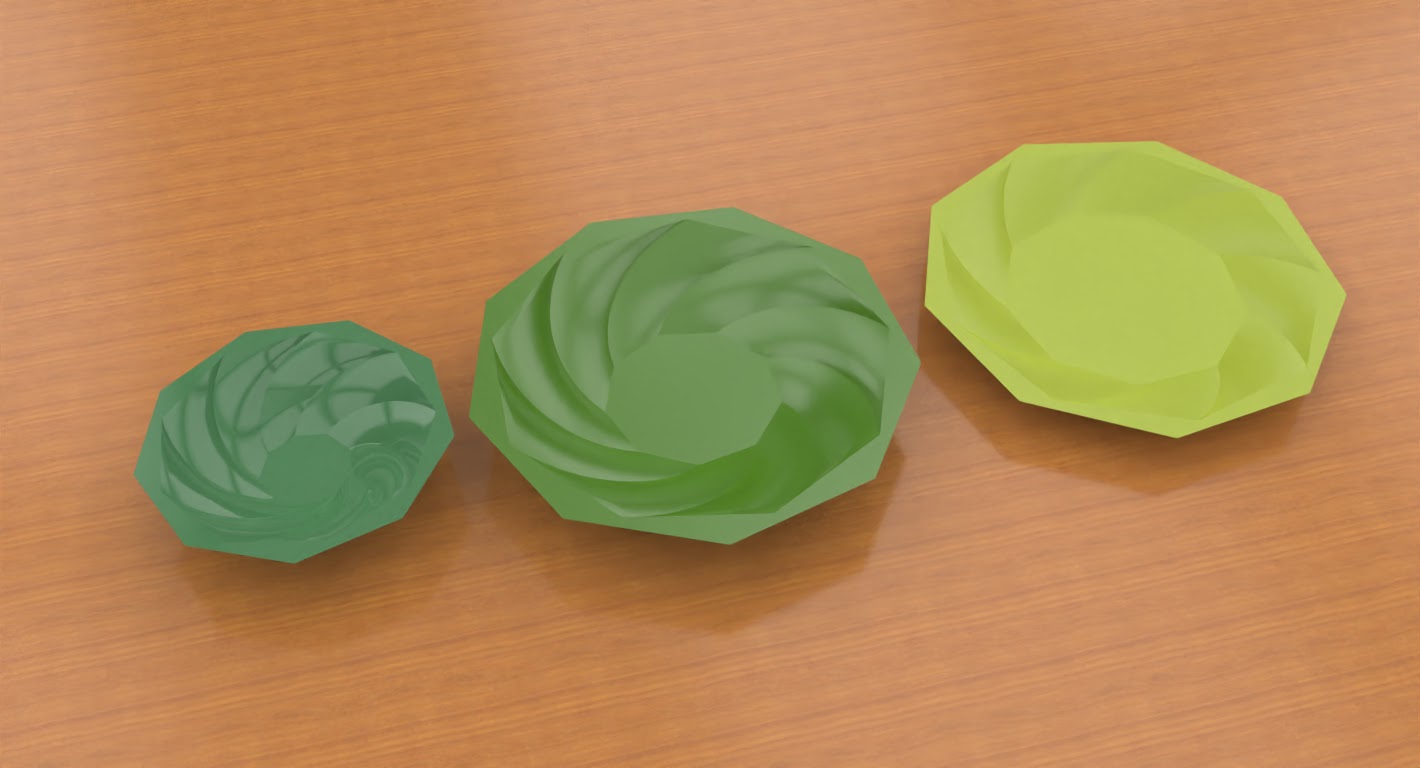

For the final project to make something on the CNC machine, I came up with this set of shallow dishes for holding jewelry and such. If I had to pick one, I would probably make the middle-sized one. For the CNC machine, I would make a negative mold of the object.
This is the definition I used in Grasshopper to make my object.
